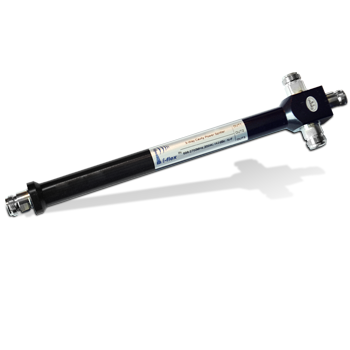

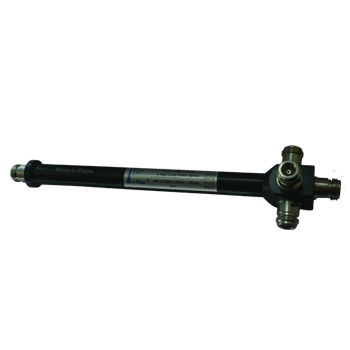

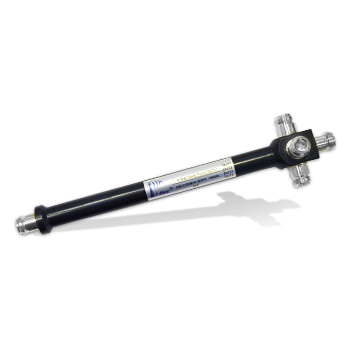

i-flex cavity power splitters are used in a wide verity of applications and can cater to any solution where RF signal needs to be equally distributed to multiple RF paths. i-flex’s compact, cavity power splitters are known to provide low insertion loss, low distribution loss, low VSWR and low PIM rating, while delivering high isolation between output ports with excellent phase and amplitude balance. i-flex cavity power splitters are high power wide band and cater to frequency range of 698-2700MHz and are available with DIN 7-16 connector type and N connector type. All i-flex cavity power splitters come in 2-way, 3-way and 4-way port design and are tested and approved by third party testing.

Features

• DIN 7-16 connector type and N connector type for all models.
• Following power distributions are available in i-flex power splitters:

2-way splitter 3.00dB
3-way splitter 4.80dB
4-way splitter 6.00dB

• Low VSWR.
• Low PIM rating ≤ -160dBc.
• Fast and easy installation.
• Water resistant.
• Adaptable to harsh environments which ensures long life & consistent performance.

Applications

• Used for equal distributions of high power RF signals in in-building DAS solutions.
• Used by the RF designer in order to achieve equal distribution of RF signal within a certain network
  deployment.

*All Cavity power splitters are available with Female gender combination in 4.3-10 connector type
