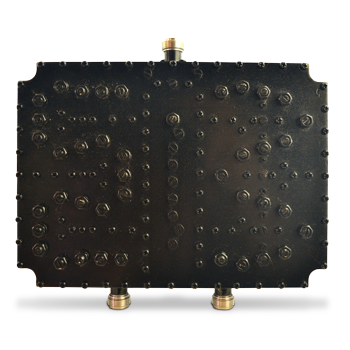

i-flex offers a wide range of diplexers and twin diplexers that are designed specifically as a compact solution to allow the co-sitting of two different frequency bands on to one common output for diplexer and two outputs for twin diplexers. The diplexers by i-flex are known to provide low insertion loss and exceptional intermodulation performance, resulting in a highly reliable product. The i-flex diplexers are available in a variety of configurations, i-flex diplexers product line support various generations such as GSM, DCS, UMTS, WCDMA, WiMAX & LTE.

Features

• DIN 7-16 connector type and N connector type are available.
• Low insertion loss.
• High level of isolation between ports.
• Low VSWR.
• Low PIM rating ≤ -160dBc.

Applications

• Used in order to accommodate multi-services provided by the operators between 380-960MHz
  and 1710-2700MHz.
• Used in both indoor and outdoor applications in order to ensure signal transmission from BTS to
  RF antennae.

*All diplexer and twin diplexer are available with Female gender combination in 4.3-10 connector type
