LAN Cables

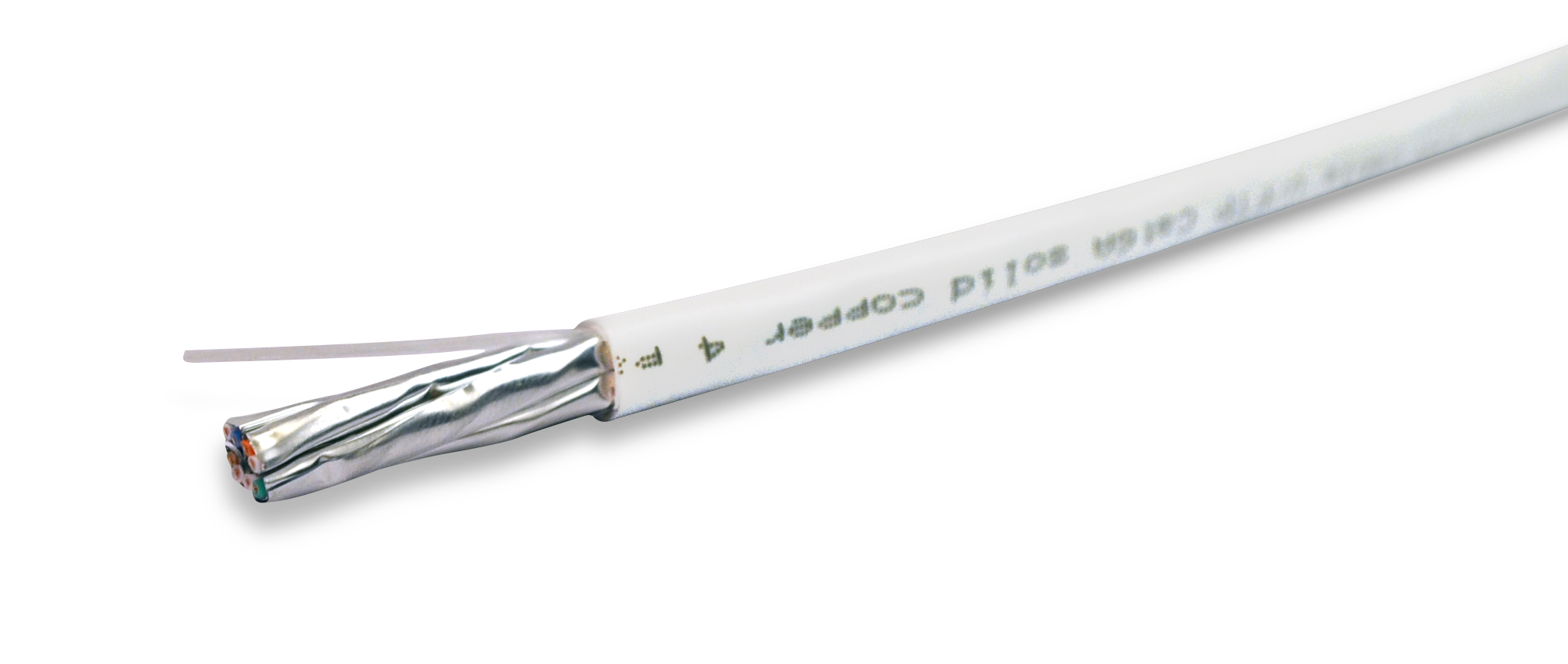

i-connect CAT 6A shielded LAN cable takes the performance capabilities of copper infrastructure to new levels. The cable meets the ISO/IEC, TIA standards and consists of 4 pairs with different types of foil shielding to ensure high network performance. As compared to unshielded versions, the reduced diameter of shielded cables occupy less space in pathways.
Features:
- 25-year system warranty.
- Lightweight and compact design.
- Available in U/FTP, F/UTP, F/FTP, S/FTP shielding.
- Specified to 500MHz.
- Suitable for 10GBASE-T Ethernet applications.
- Available in 500m reels and 305m reels.
- Available in CMR, LSZH and PVC jacket.
- Cross filler is used to reduce cross talk for F/UTP and SF/UTP versions.
- Drain wire for earthing.
- Outdoor versions with HDPE jackets are also available.
Applications:
- Data Centre horizontal cabling.
- 155Mbps/ 662Mbps/ 1.2G ATM.
- Fast Ethernet 100Base-T.
- According to IEEE802.3 1000Base-T.
- Gigabit Ethernet 10GBase-T.
- Suitable for horizontal cabling.
| Order Code | Standard guage | Shielding Type | No. of Pairs | Inner conductor Material | Outer Jacket Material | Colour | Standard Reel size |
|---|---|---|---|---|---|---|---|
| 100-598 | 23 AWG | U/FTP | 04 | Solid Copper | PVC | Grey | 305m |
| 100-603 | 23 AWG | U/FTP | 04 | Solid Copper | CMR | Grey | 305m |
| 100-608 | 23 AWG | U/FTP | 04 | Solid Copper | LSZH | Grey | 305m |
*Customised reel sizes and colours are also available.
