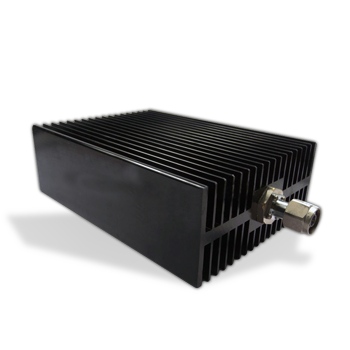

The RF termination loads offered by i-flex are matched to 50 Ohm impedance. The i-flex RF termination load is designed to efficiently terminate power. i-flex termination loads operate in the frequency range from DC up to 3GHz. i-flex RF termination loads are manufactured with aluminium body and cooling fin design, which results in minimising temperature rise of resistive film terminating element. The standard connectors are DIN 7-16 connector type and N connector type with Male and Female combination.

• Covers frequency range from DC up to 3GHz for both DIN 7-16 connector type and N connector type.
• Features Covers frequency range from DC up to 3GHz for all 4.3-10 connector types.
• Powers up to 200W for DIN 7-16 connector type and N connector type.
• Minimum VSWR.
• High reliability.
• PIM rating ≤ -160dBc.

Applications
Used in order to terminate the power and avoid signal leakage at unused port of power splitters,
directional coupler, 3dB hybrid coupler, 4×4 hybrid matrix, diplexer, twin diplexer, triplexer, twin
triplexer, quadplexer and twin quadplexer during installation of in-building DAS solutions.

*All RF Termination loads are available with Male and Female gender combination in 4.3-10 connector
type.

* Termination loads are also available with other PIM ratings as well as customized power factors
