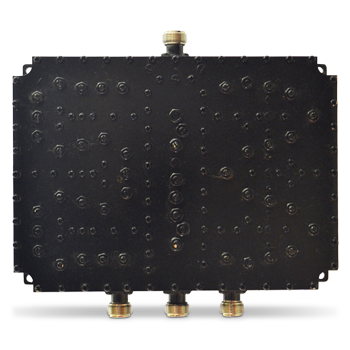

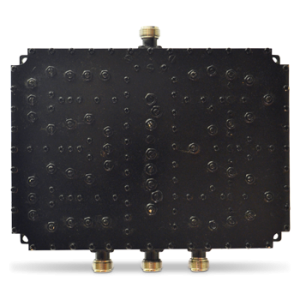

i-flex triplexer and twin triplexer are each housed in a compact, robust die cast case for reliability and ease of mounting. The Triplexer, by i-flex, is based on three inputs with one output and the twin triplexer is based on six inputs with two outputs. The input signals are well isolated and have minimal insertion loss over their respective frequency bands.
Focusing on providing high technical performance, the i-flex triplexers and twin triplexers are efficiently designed to provide low insertion loss with high port isolation and high power handing capability.

Features

• DIN 7-16 connector type and N connector type are available.
• Low insertion loss.
• High level of isolation between ports.
• Low VSWR.
• Low PIM rating ≤ -160dBc.

Applications

• Used in equipment room next to signal source in order to ensure combination of different
  frequency bands of one operator or different frequency bands from multi-operators.
• The input signals are further distributed in one signal at one output port of triplexer and two
  outputs of twin triplexer.
• Used in both indoor and outdoor applications for signal transmission from BTS to RF antennae.
• Used in order to accommodate multi-services provided by the operators between 698-960MHz,
  1710-2170MHz and 2300-2700MHz.

*All triplexer and twin triplexer are available with Female gender combination in 4.3-10 connector type.
