7Ah-200Ah

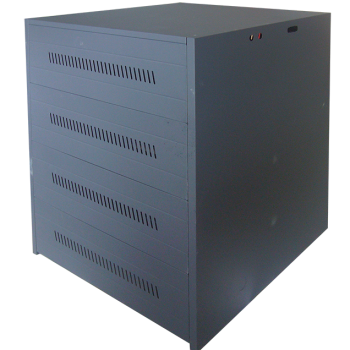

Whether you require a standalone battery enclosure or custom designed battery rack, Energen has the answer with its tailored to suit battery cabinets and racks, guaranteed to meet and exceed your specific battery storage needs. The Energen battery cabinets and racks are designed to work seamlessly with all batteries and other accessories. The Energen battery cabinets and racks are suitable for accommodating batteries from 7Ah to 200Ah range.
Product Highlights
- Suitable battery capacity (7Ah to 200Ah).
- Battery cabinet wiring and fuse kit available.
- Circuit Breaker (CB) kit that matches the UPS system’s maximum power capacity.
- Easy installation.
- Innovative design, allowing easy access to batteries.
- Compact design- saves valuable space.
- Lightweight cabinet and racks.
Applications
- Suitable for the connection of battery banks to active power back-up devices such as UPS, rectifiers and so on.
| Order Code | Dimensions(mm) | Battery Capacity and Quantity | Weight (KG) | Suitable UPS model | Cable Specs | DC Breaker Rating installed | Number of Shelves | |
|---|---|---|---|---|---|---|---|---|
| 905-043 | 585*470*320 | 18/26/40/65/100AH | 14/8/6/3/3 Pieces | 2.2 | T-4104 (1KVA) | 6 sqm,φ 0.64mm*19 | 63A/1P | 1 |
| 905-044 | 450*470*615 | 18/26/40/65/100AH | 20/12/8/4/4 Pieces | 15 | T-4004 (1KVA) | 6 sqm,φ 0.64mm*20 | 63A/1P | 2 |
| 905-045 | 450*470*615 | 18/26/40AH | 14/8/6 Pieces | 15 | T-4104 (2KVA) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-046 | 450*470*615 | 18/26/40AH | 14/8/6 Pieces | 15 | T-4104 (3KVA) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-047 | 450*470*615 | 18/26/40AH | 14/8/6 Pieces | 15 | T-4004 (2KVA&3KVA -96 Vdc) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-048 | 585*470*615 | 18/26/40/65/100AH | 28/16/12/6/6 Pieces | 18 | T-4104 (2KVA) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-049 | 780*470*615 | 18/26/40/65/100AH | 44/20/16/8/8 Pieces | 18 | T-4104 (3KVA) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-050 | 780*470*615 | 18/26/40/65/100AH | 44/20/16/8/8 Pieces | 18 | T-4004 (2KVA&3KVA -96 Vdc) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-051 | 780*470*615 | 18/26/40AH | 44/20/16 Pieces | 18 | T-4004 (2KVA,3KVA & 6KVA -192 Vdc) | 6 sqm,φ 0.64mm*19 | 63A/1P | 2 |
| 905-052 | 780*470*615 | 18/26/40AH | 44/20/16 Pieces | 18 | T-4004 (10KVA) | 10 sqm,φ 0.64mm*49 | 63A/1P | 2 |
| 905-053 | 780*470**1190 | 26/40/65/100AH | 40/32/16/16 Pieces | 45 | 1)T-4004 (2KVA,3KVA & 6KVA -192 Vdc) 2) T-4104 (6KVA) | 6 sqm,φ 0.64mm*19 | 63A/1P | 4 |
| 905-054 | 780*470**1190 | 26/40/65/100AH | 40/32/16/16 Pieces | 45 | 1)T-4104 (10KVA) 2) T-4105 (10KVA) 3) T-4004 (10KVA,15KVA) 4) T-4005 (10,15,20KVA) | 10 sqm,φ 0.64mm*49 | 63A/1P | 4 |
| 905-055 | 780*470**1190 | 26/40/65/100AH | 40/32/16/16 Pieces | 45 | T-4105 (15KVA, 20KVA) | 16 sqm,φ 0.64mm*49 | 63A/1P | 4 |
| 905-056 | 780*470**1190 | 26/40AH | 40/32 Pieces | 45 | 1) T-4004 (2,3,6KVA-192 Vdc) 2) T-4104 (3KVA) 3) T-4104 (6KVA- 2 x 16 in parallel) | 6 sqm,φ 0.64mm*19 | 63A/1P | 4 |
| 905-057 | 780*470**1190 | 26/40AH | 40/32 Pieces | 45 | 1) T-4004 (10KVA) 2) T-4104 (10KVA) 3) T-4105 (15KVA) | 10 sqm,φ 0.64mm*19 | 63A/1P | 4 |
| 905-058 | 780*470**1190 | 26/40AH | 40/32 Pieces | 45 | T-4105 (20KVA - 2 x 16 in parallel) | 16 sqm,φ 0.64mm*20 | 100A/1P | 4 |
| 905-059 | 780*470**1190 | 26/40/65/100AH | 40/32/16/16 Pieces | 45 | 1) T-4005 (10,1520KVA) 2) T-4007 (10,15,20KVA) | 10 sqm,φ 0.64mm*19 | 63A/1P | 4 |
| 905-060 | 950*470*1190 | 26/40/65/100AH | 40/32/16/16 Pieces | 50 | 1) T-4104 (10KVA) 2) T-4105 (10,15KVA) | 10 sqm,φ 0.64mm*19 | 63A/1P | 4 |
| 905-061 | 950*470*1190 | 26/40/65/100AH | 40/32/16/16 Pieces | 50 | T-4105 (20KVA) | 16 sqm,φ 0.64mm*19 | 100A/1P | 4 |
| 905-062 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | 1) T-4005 (10,15 20KVA) 2) T-4007 (10,15,20KVA) | 10 sqm,φ 0.64mm*19 | 100A/1P | 4 |
| 905-063 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | 1) T-4005 (30KVA) 2) T-4007 (30KVA) | 16 sqm,φ 0.64mm*19 | 100A/1P | 4 |
| 905-064 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | 1) T-4005 (40KVA) 2) T-4007 (40KVA) | 25 sqm,φ 0.58mm*98 | 125A/1P | 4 |
| 905-065 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | T-4007 (60KVA) | 35 sqm,φ 0.58mm*133 | 100A/2P + DC BOX | 4 |
| 905-066 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | T-4007 (80KVA) | 2 x 25 sqm,φ 0.68mm*133 | 125A/2P + DC BOX | 4 |
| 905-067 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | T-4007 (100KVA) | 2 x 25 sqm,φ 0.68mm*133 | NM1-400S/ 3300 315A/3P + DC BOX | 4 |
| 905-068 | 780*880*1190 | 65/100AH | 32 Pieces | 77 | T-4007 (120KVA) | 2 x 35 sqm,φ 0.68mm*133 | NM1-400S/ 3300 315A/3P + DC BOX | 4 |
| 905-069 | 1120*1220*1480 | 65/100/200AH | 40/40/32 Pieces | 210 | T-4007 (80KVA) | 2 x 25 sqm,φ 0.68mm*133 | 125A/2P + DC BOX | 4 |
| 905-070 | 1120*1220*1480 | 65/100/200AH | 40/40/32 Pieces | 210 | T-4007 (120KVA) | 2 x 35 sqm,φ 0.68mm*133 | NM1-400S/ 3300 315A/3P + DC BOX | 4 |
