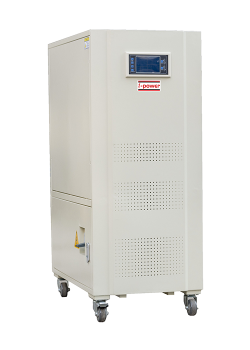

The i-power single phase AVR-1001 static voltage regulator features continuous seamless correction of voltage, surges, spikes, sags & brown-outs. The AVR-1001 offers wide range voltage stabiliser, used to cope with input voltage down to 88V, and output voltage regulated to rated 220V without de-rating the input power. The AVR-1001 is designed to be compact and light in weight, assisting in tight regulation of power quality, without switching the active power path. This series is ideal for real-time voltage control, along with the benefits of excellent inbuilt surge voltage protection and electrical noise control circuits, thereby making it cost effective and highly reliable.

Product Highlights

• Extremely wide voltage regulation range 88-264Vac (L-N), option for customisation is available.
• 1kVA-50kVA single phase, rated voltage can be customised.
• Individual regulation of each phase for unbalance load.
• Unique small dimension.
• Reliable and quiet servo motors.
• Wheels mounted for easy installation.
• Overvoltage and under voltage cut off delay.
• Sine wave output (regardless of input waveform).
• High Mean-Time-Between-Failure (MTBF).
• Bypass switch available for easy maintenance.
• Auto power-on function on request.
• Voltage correction rate 1000V/sec.

Application

• Telecom
• Medical
• Industrial
• Commercial
• Household appliances
