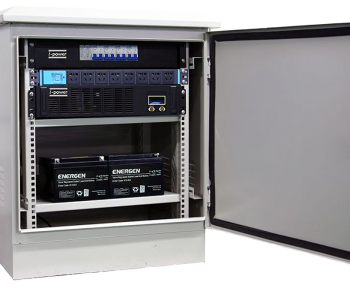

T-8001, 1-In / 1-Out, Outdoor cabinet with UPS, 0.9PF (1-3KVA)
The i-power Outdoor Master T-8001 series is a reliable and rugged outdoor backup power solution, designed for applications where a very high reliable AC supply is required. Protected by an outdoor enclosure, the T-8001 operates in the most severe weather conditions. With standard wall mounting and floor standing design, the installation for the T-8001 is quick and easy due to its small compact design and lightweight.
Product Highlights
- Rugged design for protection from the environment
- Scalable power output from 1kVA to 3kVA, with 0.9 output power factor.
- On‐line double conversion for pure sine wave output.
- Advanced IGBT technology to achieve high overall efficiency up to 90%.
- Digital signal processing control technology to optimize reliability and ensure high performance.
- Wide input voltage (115Vac – 300Vac).
- Operating temperatures from -40°C to +60°C without air-conditioning support.
Applications
- Video security cameras
- Traffic signal lights
- Radio base stations and repeaters
- Tower and obstruction lighting
- Security systems
- Roadway display systems
- Outdoor emergency systems
- Automatic gate control systems
| UPS Specifications | ||||||
| Structure | Online Single Phase | |||||
| Input Voltage | 220Vac | |||||
| Input Voltage Range | 115-300Vac ± 5V | |||||
| Input Frequency Range(Hz) | (46-54) ± 0.5 | |||||
| Bypass Voltage | 80 Vac*(1 ± 5%)-285 Vac*(1 ± 5%) | |||||
| Input Frequency(Hz) | 50 | |||||
| Output Voltage | 208/220/230/240 Vac ± 3% (Inverter Mode) | |||||
| Output Frequency (Hz) | 46-54Hz(AC mode) : 50Hz ± 1%(BAT Mode) | |||||
| Dynamic Response | 0.05 | |||||
| Recovery Time | <60ms | |||||
| Waveform | Pure Sine Wave THD < 3% (Linear Full Load) , Pure Sine Wave THD <8% (None-Linear Full Load) | |||||
| Output Power factor | 0.9 | |||||
| Crest Ratio | 3:1 | |||||
| Inverter Bypass Transfer time | <4ms | |||||
| Cabinets Specifications | ||||||
| Cabinet Order-Code | 905-041 | 905-042 | 905-042 | 905-042 | ||
| Mounting | Wall-mounting, Pole-mounting, Floor-mounting | |||||
| Dimensions (WxDxH) mm | 600x450x700 | 600x600x1200 | ||||
| IP Rating | IP 55 | |||||
| Cooling System | Temperature Sensor Cooling Fan built-in | |||||
| Standard Level | Military | |||||
| Cable Entry | Bottom sides | |||||
| Thickness | 1.2mm | |||||
| Environment Monitoring System | Door open/Close, Temperature, Smoke sync. With SNMP(optional) | |||||
| Door | Flat lock | |||||
| Design | Sunshade design/ Split-level design / front access and maintenance / inner temperature management, fan cooling, air-con cooling, heating module, heating film | |||||
| Internal Height | 12U | 22U | ||||
| Material | Hot-Galvanzing Anti-electrostatic. | |||||
| Space for Load | 2U | 4U | ||||
| BATTERY | ||||||
| Battery Type | Sealed Lead Acid Maintenance Free | |||||
| Battery Rated volts | - | 36Vdc | - | 72Vdc | - | 96Vdc |
| Battery Rated Units | 12V/7Ahx2pc | - | 12V/7Ahx4pc | - | 12V/7Ahx16pc | - |
| Backup time | 5-10min | - | 5-10min | - | 5-15min | - |
| Charger (A) Max | 1 | 6 | 1 | 7 | 1 | 7 |
| OTHERS | ||||||
| Working Temperature | -40°C to +60°C | |||||
| Protections | Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low | |||||
| Communication Port | Rs232 (Std.) ； /SNMP/RS485/ Dry Contact （ Optional Accessory ） | |||||
