T-8002, Data Master Cabinet, 1-In / 1-Out, 0.9, (1-10kVA)

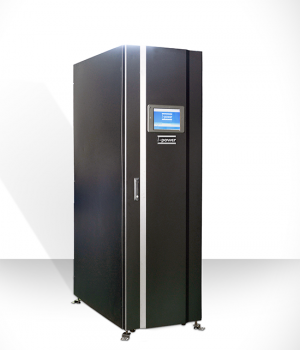

The i-power T-8002 is an all-in-one cost-effective, self-contained facility designed to house critical networking equipment and to provide the infrastructure of a conventional server facility in a portable, self-contained and robust cabinet. The T-8002 is designed for IT and non-IT environments, such as remote locations and offices without a dedicated room for IT infrastructure. The T-8002 is a unique custom designed power backup solution, providing a complete data center in a box.
Product Highlights

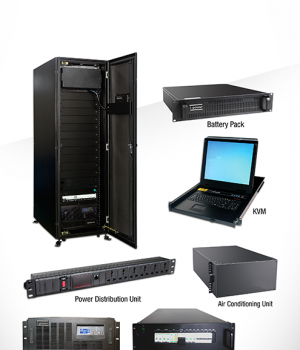

- Smart design to enable easy installation and maintenance.
- One box solution.
- Available in single, dual and three cabinet solutions.
- Built-in air-conditioning unit for temperature control.
- KVM and monitoring module included to monitor overall system working.
- Standard PDU.
- 30-40% Capex and Opex reduction. Low total cost of maintenance.
- Central power distribution unit for breakers.
- Large LCD touch screen.
- Rack mount 1kVA – 10kVa (1P/1P), (3P/1P) online UPS
- Battery pack for standard backup
- Optional separate battery cabinet long backup power solution.
Applications
- Networking
- Datacentres
- Education
- Health care
- Banking
- E-commerce
- Security
| Cabinet AIRCON Specifications | |
| Total Refrigerating O/P (kW) | Std.：3.5；Max.：4 |
| Total Capacity (kW) | 1.7 |
| Environmental Range | -45～50℃；0%～90%RH |
| Internal Size（mm） | W440×D800×H260（6U） |
| Power Supply | 220Vac/50Hz |
| Ventilation | From Top to Bottom |
| UPS Specifications | |
| UPS structure | 1/1 Phase |
| Capacity | 1-10kVA |
| Input Volt. Range | 175～280Vac1/1 Phase, |
| Display | LCD Display：I/P, O/P Voltage, Freq., BAT Volt, Load %, etc. |
| Input Volt. Range | 115～300Vac |
| Input PF | ≥0.98 |
| Voltage Regulation | ±2% |
| Frequency Regulation | 50/60Hz±0.05Hz |
| Net Weight (kg) | 20 |
| Communication Port | RS232, SNMP（Optional） |
| Output Voltage | 220/230/240Vac |
| Static Bypass Transfer Time | 0ms |
| Output PF | 0.9 |
| Distortion | Linear Load＜1%；Non-Linear Load＜5% |
| Battery Specifications | |
| Nominal Voltage | 12V/7Ah |
| Backup Time | Standard ≥10min(Long backup time can be customized） |
| Size (WxDxH)mm | 430×500×88/2U（ Built-in 8 Units 7Ah） |
| 430×500×132/3U（ Built-in 16 Units 7Ah） | |
| Monitoring Interface | |
| Temp., Humi., Ports | 5 |
| Rs485 Ports | 2 |
| Rs232 Ports | 1 |
| Display | 10 Touch screen |
| Power Distribution Unit (PDU) Specifications | |
| Voltage Detection Range | AC100～250V |
| Current Detection Range | 0～30V |
| Digits | 8 Digits，Detection 0.1kW Precision：1.5 Level |
| KVM Specifications | |
| Screen Size | 17 inches |
| Working Volt | 5V |
| Physical Specifications | |
| Cabinet Size（mm） | 1800*1100*2000/42U |
| Weight (kg) | 1500 |
